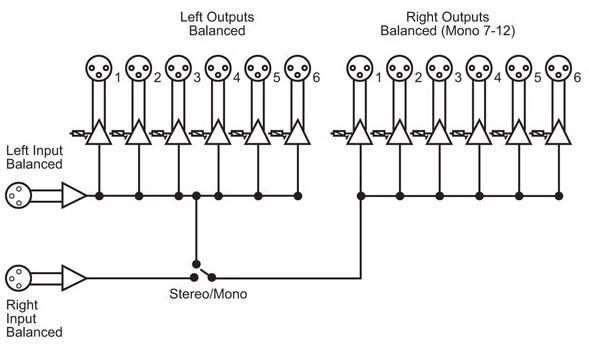

SONIFEX 6 way stereo, 2x6 mono, or 1x12 mono med Gain
RB-DA6G er en 1U rackmontert høyytelses 6-veis stereofordelingsforsterker for å dele en kilde i en rekke forskjellige utganger. Det er identisk med RB-DA6 med tillegg av individuell justering av utgangsforsterkning, i stedet for global stereo forsterkningsjustering.
Kontakt vår ekspert om dette produktet
Aksel E. Holand
Aksel er merkevareansvarlig for Klotz, Neutrik, Sonifex og Ambient.
aeh@benum.com +47 970 55 952 send e-post
RB-DA6G 6 Way Stereo Distribution Amplifier With Output Gain Control
The RB-DA6G is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. It is identical to the RB-DA6 with the addition of individual output gain adjustment, instead of global stereo gain adjustment.
Technical Specification For RB-DA6G |
|
Audio Specification |
|
| Maximum Input Level: | +28dBu |
| Maximum Output Level: | +28dBu |
| Frequency Response: | 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz) |
| Gain Range: | Adjustable 8dB loss to 18dB gain (12 adjustable pots) |
| Common Mode Rejection: | >66dB typically |
| Input impedance: | >20kΩ bridging |
| Output impedance: | <50Ω |
| Distortion: | 0.01% THD @ 1kHz, ref +8dBu output |
| Noise: | -88dB unity gain, ref +8dBu output |
Connections |
|
| Inputs: | 2 x XLR 3 pin female (balanced, can be unbalanced) |
| Outputs: | 12 x XLR 3 pin male (balanced, can be unbalanced) |
| Mains Input: | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating: | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
Equipment Type |
|
| RB-DA6G: | 6 way stereo distribution amplifier with output gain control |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs |
| SKU | RB-DA6G |
|---|---|
| Vekt (kg) | 1.900000 |
| Enhet | Stk |
| Fabrikant | Sonifex |
| Tilkobling | XLR |
